Breakpoints: Debugging like a Pro
Tools Mobile

Breakpoints: Debugging like a Pro

When I started as an iOS developer, my biggest problem was with app crashes, that’s because I really didn’t know how iOS, Swift, and Objective-C worked. Back then, I wrote a lot of bad code, not worrying about memory usage, memory access, ARC or GCD. That’s simply because I didn’t know about that stuff. I was a beginner for god sakes.

Like most of the beginners, Stack Overflow community taught me a lot about “doing things in the right way”. I’ve learned a lot of tricks that helped me to improve my production process. In this article, I’ll share some of them about the most important tool used in this learning process: the breakpoints!

So, set your belt and let’s go dig in 🙂

Breakpoints

The Xcode Breakpoints is a powerful tool and there is no doubt about it. Its main purpose is to debug code, but what if I say that they can offer more than that? Ok, let’s start with the tricks!

Conditioning breakpoints

Maybe you already got yourself in a situation where your TableView is working so well for all users models, but there is a particular one that is causing some trouble. To debug this entity, the first thing that you may think is: “Ok I will put a breakpoint on cell loading and see what is going on”. But for each cell, even the working ones, your breakpoint will be activated and you will have to skip it until the one that you want to debug.

The Office TV show gif, saying "please god, no"

To solve this issue, you can go ahead and give your breakpoint a condition to stop, like I did for the user named “Charlinho”.
A conditional breakpoint screenshot

Symbolic Breakpoints

“Relax, I will use a pod, that should save some work.”

Who never said that? But using a pod or an external library you are importing external code into your project, which you may not know how it was written. Let’s say that you tracked an error occurring on some function on a pod, but you don’t know where the function is in the code. Just take a breath, keep it cool… you have Symbolic Breakpoints.

These breakpoints are activated when a previously declared symbol is called. This symbol can be any free functions, instance and class methods, whether in your own classes or not. So to add a breakpoint in a function, no matter who’s calling it, you just have to add a Symbolic Breakpoint observing the function that you want to debug. In my sample below, I’m observing the method UIViewAlertForUnsatisfiableConstraints. This method will be called every time that Xcode finds some Autolayout issue. You can see a more advanced tip on this post.

A Symbolic breakpoint option screenshot

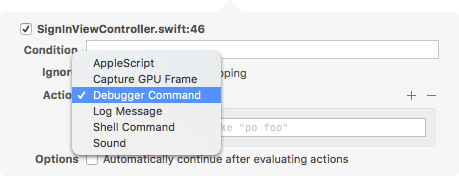

Customizing breakpoints

Like I said previously, breakpoints are a powerful tool. Did you know that you can even add custom actions on a breakpoint? Yeah, you can do that! You can perform an AppleScript, Capture CPU Frame, use LLDB (Low-level Debugger) commands and even shell commands.

To do that you can simply click right button and select edit breakpoint

OK, you should be thinking: “Cool! But why?”

I’ll give you a good use case that will improve your work. The most common feature on an app is the Login, and sometimes testing it is a little bit boring. Having to type the user and password – multiple times, if using an admin and a normal account – could make the process a little nasty. The common approach to “automate” the login screen is to create a mocked entity and use it into an if debug clause. Something like that:


struct TestCredentials {
    static let username = "robot1"
    static let password = "xxxxxxxxxxxxx"
}

private func fillDebugData() {
     self.userNameTxtField.text = TestCredentials.username
     self.passwordTxtField.text = TestCredentials.password
}

But hey, you can use breakpoints to make things a little easier!

Go into your login screen, add a breakpoint and then add two LLDB expressions that will fill your user and password. Like I did in the example below.

A Custom breakpoint executing express commands.

With that in mind, you can add two breakpoints with different credentials. To switch between them, you just have to enable/disable the one that you want to test. There is no rebuild required once you are changing the user on the fly.

Pretty cool, huh?

COMBO BREAKER!

The WWDC 2017 was happening while I’m was writing this article. They launched some cool stuff like the new Xcode 9, for example. If you want to know what is new with debug tools on Xcode 9, I strongly recommend watching the Session 404.

That’s all folks! Now you know the basics Breakpoint tricks that helped me a lot when I was a beginner. Is there some cool trick that I didn’t mention? Do you have some good one too? Please feel free to share in the comments!

See’ya!
